If you’ve worked with SonicWall firewalls long enough, you’ve probably run into this one:
“Error: Unknown Service Class”
It usually appears when creating or editing a NAT policy, often after you’ve already configured dozens without issue. The error message itself isn’t helpful, the UI doesn’t point you in the right direction, and SonicWall logs don’t exactly spell it out either.
On the surface, this looks like a bug. In reality, it’s a design enforcement rule tied to how SonicWall internally classifies service objects — and once you understand that, the error makes perfect sense.
This article breaks down why this error occurs, how SonicWall service classes actually work, and how to fix and prevent the issue permanently, based on real-world firewall administration experience.
Understanding SonicWall NAT at a Technical Level
Before jumping to the fix, it’s worth revisiting how SonicWall processes NAT policies.
A SonicWall NAT rule consists of:
- Original Source
- Translated Source
- Original Destination
- Translated Destination
- Original Service
- Translated Service
Most admins focus on IPs and zones — but services are first-class objects in SonicWall’s policy engine, not just port numbers.
Internally, SonicWall groups services into service classes based on:
- Protocol type (TCP, UDP, ICMP, etc.)
- Port structure (single, range, or group)
- Stateful inspection requirements
This classification is strict — and that’s where the problem begins.
What “Unknown Service Class” Actually Means
Despite the wording, this error does not mean SonicWall doesn’t recognise the service.
What it really means is:
The Original Service and Translated Service belong to different protocol classes, and SonicWall refuses to map them in a NAT rule.
In other words:
- TCP cannot be translated to UDP
- Single-protocol services cannot be translated to multi-protocol services
- Service groups that mix protocols cannot be used against single-protocol services
The firewall doesn’t know how to statefully track traffic when the service classes don’t align — so it stops you before the rule can be saved.

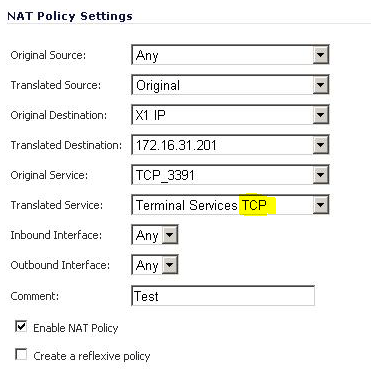

A Real-World Example (The Most Common One)
This scenario comes up constantly:
- Original Service:
- Custom service: TCP 3391
- Translated Service:
- Built-in service: RDP (TCP and UDP 3389)
At a glance, this looks fine. You’re forwarding TCP 3391 externally to RDP internally.
But SonicWall sees:
- Original: TCP only
- Translated: TCP + UDP
That’s a protocol class mismatch, and SonicWall throws:
Error: Unknown Service Class
Why SonicWall Enforces This So Strictly
From a firewall engineering perspective, this behavior is intentional — and honestly, correct.
1. Stateful Inspection Limitations
SonicWall tracks sessions differently for TCP vs UDP:
- TCP is connection-oriented
- UDP is connectionless and timeout-driven
Mapping between different protocol behaviors introduces ambiguity.
2. Policy Predictability
Allowing mixed protocol translation would:
- Break logging accuracy
- Complicate DPI inspection
- Introduce unexpected firewall behavior
SonicWall chooses predictability over convenience.
3. Security Implications
Multi-protocol services can unintentionally expose ports you didn’t intend to publish — especially when admins assume “RDP = TCP”.
Built-In SonicWall Services: A Hidden Trap
One of the biggest contributors to this issue is blind trust in built-in service objects.
For example:
- RDP → TCP and UDP
- DNS → UDP and TCP
- SIP → Often multiple protocols and ports
- Custom application services → Frequently grouped
If you don’t inspect the service definition, you can easily introduce mismatches without realising it.
Pro tip: Always open the service object and check the protocol list before using it in NAT.
The Correct Fix (Not the Quick Hack)
Step 1: Identify the Protocol Mismatch
Check both:
- Original Service
- Translated Service
Confirm:
- Protocol type
- Single vs multi-protocol
- Port definitions
Step 2: Create a Matching Custom Service Object
Instead of using a built-in service:
- Create a custom TCP-only or UDP-only service
- Match the protocol on both sides
Example:
- Original Service: TCP 3391
- Translated Service: Custom TCP 3389
Step 3: Reapply the NAT Rule
Once the service classes match exactly, the error disappears immediately.
No reboot.
No firmware upgrade.
No support case required.
Preventing the Issue in Enterprise Environments
In larger environments, this error often surfaces during:
- Firewall migrations
- Rule standardisation projects
- Junior admin changes
- Documentation-driven rebuilds
Best Practices I Use in Production
1. Avoid Built-In Services for NAT
Built-in services are fine for firewall rules — not NAT.
2. Create “NAT-Safe” Service Objects
Naming convention example:
NAT_TCP_3389NAT_UDP_1194
This makes intent obvious and avoids mistakes.
3. Document Protocol Assumptions
Especially important when:
- Migrating from Cisco / FortiGate / Palo Alto
- Translating legacy firewall rules
Different vendors handle services differently.
4. Validate After Firmware Upgrades
Service definitions can change between SonicOS versions — especially newer Gen7 firmware.
Why This Error Is Easy to Misdiagnose
The error message doesn’t mention:
- Protocol mismatch
- Service object structure
- Multi-protocol definitions
As a result, admins often waste time checking:
- Zones
- Interfaces
- Access rules
- NAT ordering
When the real issue is a service object design flaw, not a policy conflict.
Gen6 vs Gen7 SonicWall Considerations
While the behavior exists across versions, Gen7 firewalls:
- Enforce service validation more strictly
- Surface the error more frequently during edits
- Are less forgiving of legacy configurations
If you’re upgrading from Gen6, expect this error to appear more often — especially during rule cleanup.
Final Thoughts: This Error Is a Feature, Not a Bug
The “Unknown Service Class” error feels cryptic, but it’s actually SonicWall doing you a favor.
It prevents:
- Broken NAT translations
- Ambiguous state tracking
- Accidental multi-protocol exposure
Once you understand how SonicWall classifies services internally, this error becomes easy to diagnose — and even easier to avoid.
Like most firewall issues, the real fix isn’t clicking harder — it’s understanding the platform’s design philosophy.
And that’s what separates firewall admins from firewall operators.
